Ford Connect Freedom™
Model Options

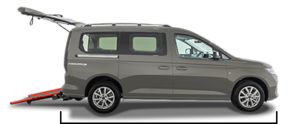

Ford Freedom™ is available with two models (RE and RSX) offering different seating arrangements, and with two different wheelbase options (short wheelbase “Standard” and long wheelbase “Grand”).
Grand models are slightly larger in length, allowing for more seating configurations or providing extra space for larger wheelchairs and powerchairs, medical equipment, and luggage.

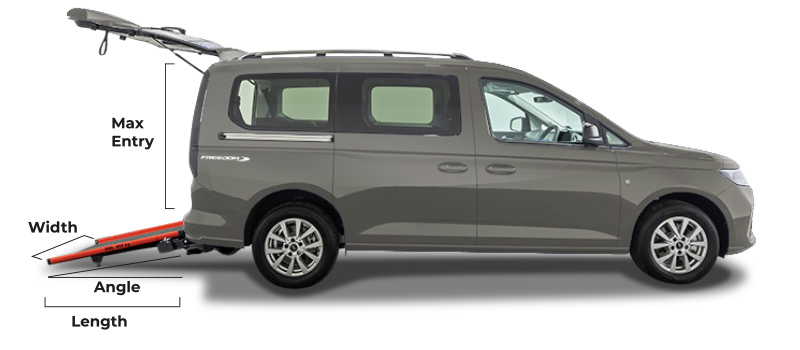

Ramp and Access Dimensions
| Key Dimensions | Values |
|---|---|
| 1. Ramp Width (mm) | 758 |
| 2. Ramp Length (mm) | 1,215 |
| 3. Ramp Angle (°) | 14.5 |
| 4. Maximum Entry Height (mm) | 1,370 |
| Ramp Safe Working Load (kg) | 400 |
| Front and rear restraint systems maximum weight (kg) | 200 |
| Electric winch maximum lifting capacity (kg) | 275 |
Engine Options
Diesel Automatic
| Specification | Values |
|---|---|
| Engine | 2.0L EcoBlue 122 PS |
| Emission Control Standard | Euro 6.2 |
| Fuel Tank Capacity (L) | 50 |
| Start/Stop Technology | Yes |
