Maya Mobility - Side Door Lift
Our new cassette lift series is the ideal solution for adapting vehicles for disabled transport without compromising interior space.
Cassette wheelchair lifts can be mounted under the chassis or on the exterior of cars, vans, or specialized vehicles.
Discover our different models and choose the one that best suits your needs.

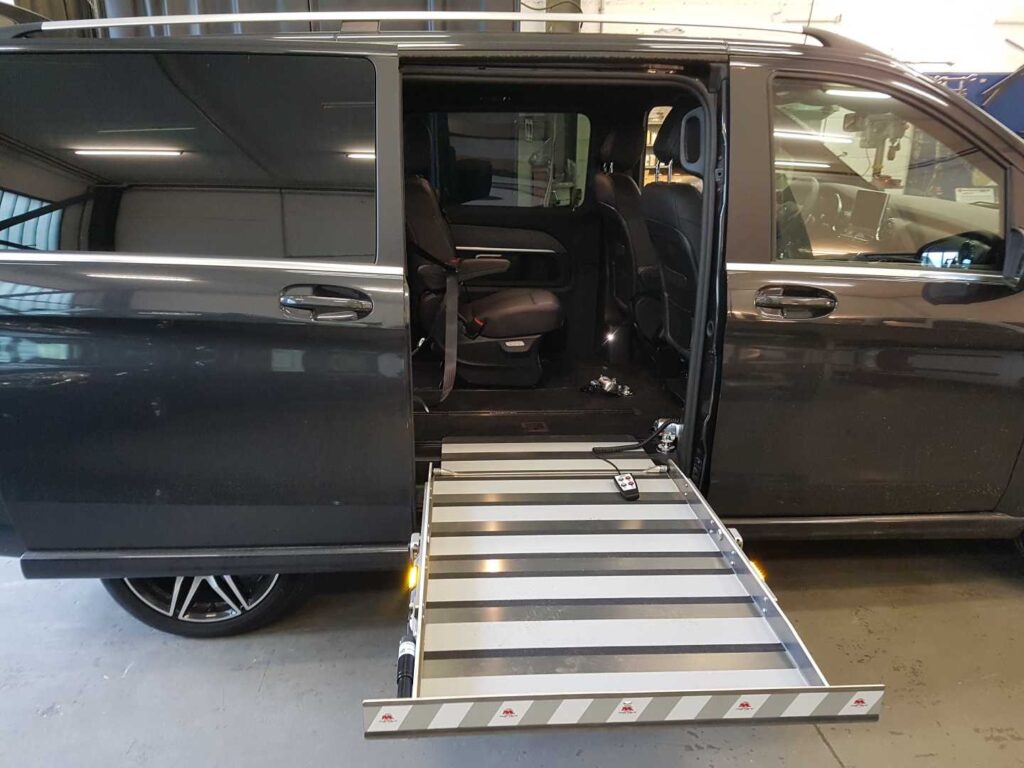

Extra-flat EP300 cassette lift
Thanks to its reduced thickness, the EP300 cassette lift can be mounted on the side without requiring extensive modifications to the vehicle. The model is fully automatic and features:
A silent, Italian-made electro-hydraulic power unit with an emergency backup pump
Stainless steel cassette
Automatic aluminum non-slip platform
Closed cassette structure with automatic rear cover
Automatic safety flaps for vehicle and ground connection
Electric control system via a four-button coiled cable remote control panel
-
Warranty
24 Months -
Certified
Compliant with CE Regulations
TECHNICAL DATA
| Product | Max. Capacity | Weight | Power Supply | Max. Pressure | Lifting Height | Cassette Overall Dimensions | Platform | Emergency Auxiliary Pump |
|---|---|---|---|---|---|---|---|---|
| EP 300 | 300 kg | 140 kg | 12V | 180 bar | 47 cm | 169.1 × 98.5 | 120 × 80 cm | Yes |

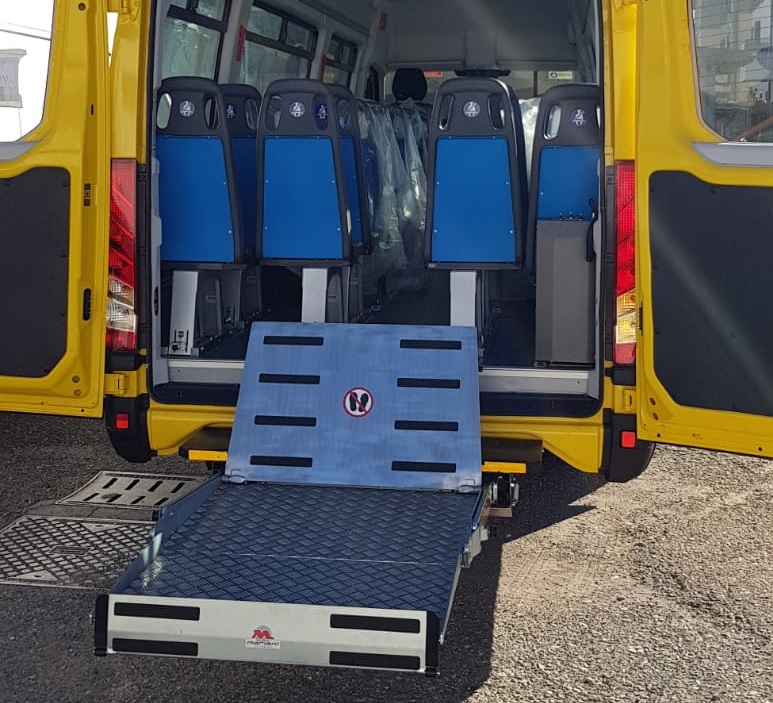

SCM cassette wheelchair lift
This cassette lift can be mounted on the rear door (tailgate) or, in some vehicles, on the side door.
This model is available in two different size options, referring to the total length of the cassette.
Both models feature:
- Silent, Italian-made electro-hydraulic power unit with emergency backup pump
- Electric geared motor for platform opening with manual emergency system
- Electric control system via coiled cable hand remote control
- Stainless steel cassette
-
Warranty
24 Months -
Certified
Compliant with CE Regulations
TECHNICAL DATA
| Product | Max. Capacity | Weight | Power Supply | Lifting Height | Overall Dimensions | Platform |
|---|---|---|---|---|---|---|
| SCM 860 | 300 kg | 130 kg | 12V | 100 cm | 86 × 98.8 cm | 114 × 80 cm |
| SCM 1090 | 300 kg | 130 kg | 12V | 100 cm | 109 × 98.8 cm | 114 × 80 cm |
Sci Underfloor Cassette Wheelchair Lift
This cassette wheelchair lift is mounted on the vehicle’s chassis at the level of the rear door (tailgate), allowing the entire interior volume of the passenger cabin to be utilized.
The SCI 1280 model features:
Two-piece non-slip platform with manual opening
Manual platform release system with safety hooks
Automatic ground connection flap
Silent, Italian-made electro-hydraulic power unit with emergency backup pump
Electric control system via coiled cable hand remote control
Stainless steel cassette
-
Warranty
24 Months -
Certified
Compliant with CE Regulations
TECHNICAL DATA
| Product | Max. Capacity | Weight | Power Supply | Lifting Height | Platform |
|---|---|---|---|---|---|
| SCI 1280.600 | 300 kg | 85 kg | 12V | 68.6 cm | 115 × 60 cm |
| SCI 1280.800 | 300 kg | 100 kg | 12V | 68.6 cm | 115 × 80 cm |
