A-Series Wheelchair Lifts

A-Series Lifts for a better accessibility

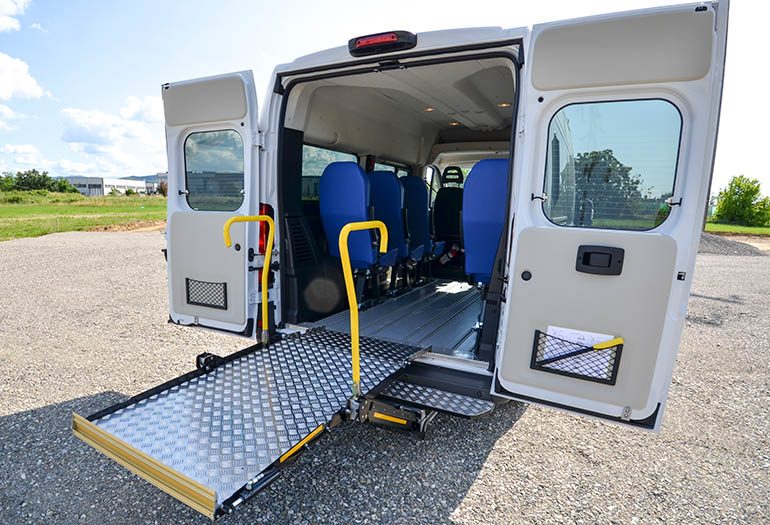

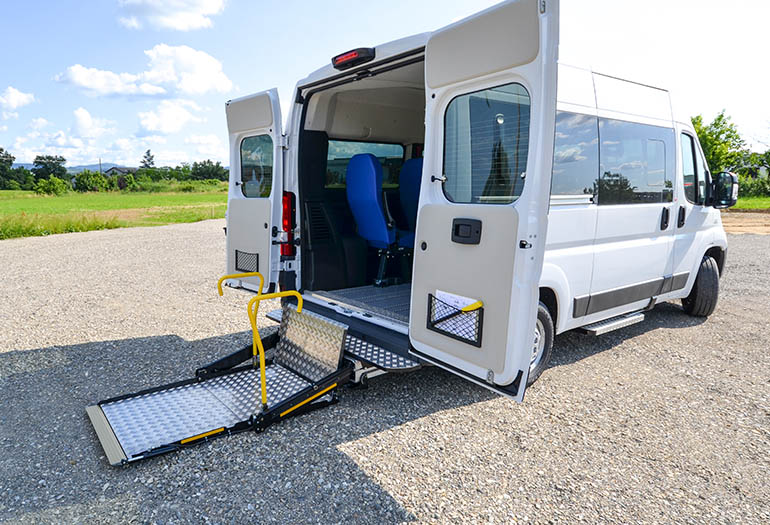

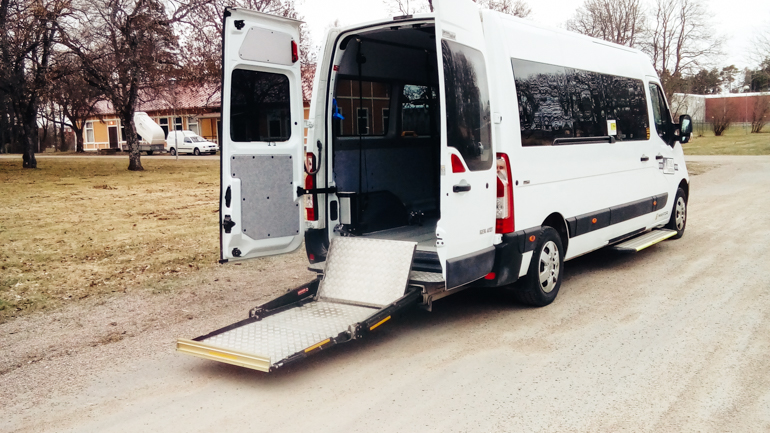

The A-Series elevator was developed for the public transport market. Key design features are high lift-to-weight ratio, reliability and serviceability. The cassette form used in the A-series has several benefits. Since it is mounted under the floor, it provides maximum flexibility in the floor placement of the vehicle. Another benefit of this is that exits from the vehicle are not blocked in case of emergency.

We have assembly for most of the available minibuses. It uses the existing hole pattern in each particular case during assembly. So we do not need to drill any holes to attach our cassette lift to the vehicle.

Vehicle Brands Suitable for A-Series Lifts

Technical Spesifications

Dimensions

Length	1220 mm
Width	1050 mm
Height	140 mm
Platform length	1225-1360 mm
Platform width	800 mm
Minimum door width	820 mm
Minimum overlap	20 mm

Yield

Ground to ground	1075 mm
Maximum movement measured from the top of the rail	430 mm
Minimum movement measured from the top of the rail	130 mm
Maximum downward movement measured from the top of the rail	645 mm

Weights

weight capacity	350 kg
cassette weight	124 kg
installed weight	149 kg
cargo weight	168 kg

Strength

Voltage	12 V
Flow	80 A

Noise level

During use

< 70 dB

During use

Cycle testing confirmed (32,000)
Salt spray test approved
EMC test approved
E5 Type approved
Climate test approved

Compliant Standards

EN 1756 compliant
ASTM B117-11 compliant
ECE R-10 compliant
